PERGOLA KIT:  IPPERK1010  (No Columns)   Made from: Heavy arch-polymer, insect/water/rot resistant double primed white

 Application: To use with existing load bearing columns or Pressure Treated Posts

 Pergola Size: 10 Feet x 10 Feet (3 meters x 3 meters)

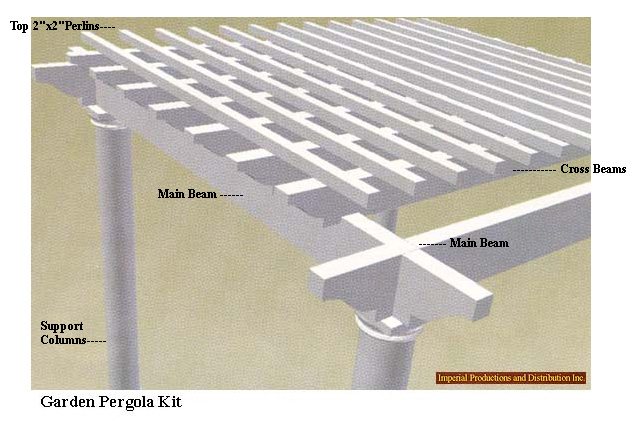

  Kit Includes:  4) 10 Feet Main Beams Notched 3"x 9" (75mm x 225mm)

                      7) 10 Feet Cross Beams Notched 3"x6"  (75mm x 150mm)

 Does not include Perlins (2" x 2" x 12 Feet) 50x50mm x 3.6 meters,  Perlins are the very top decorative cross bars

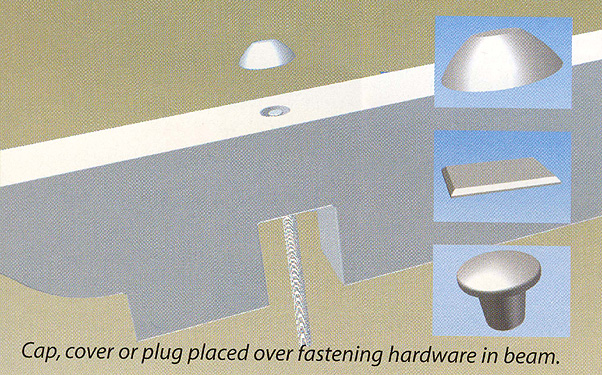

 Does not include integration hardware

 Custom Orders: Larger or with Radius Curves       Note: Crating Fees apply

 PERGOLA KIT:   IPPERK1010-C1 with 2 Load Bearing Tuscan Tapered Columns

  Made from: Heavy arch-polymer, insect/water/rot resistant double primed white

 Application: To lag against an existing structure (ie side of the house)

 Pergola Size: 10 Feet x 10 Feet (3 meters x 3 meters)

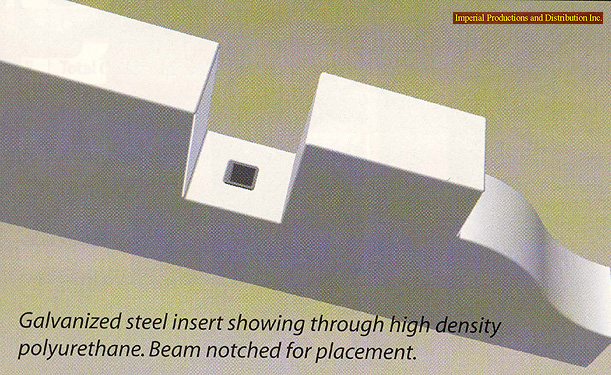

 Columns are Steel Re-enforced - all parts Double Primed White

 Kit Includes:  4) 10 Feet (3 meter)  Main Beams Notched 3"x 9" (75mm x 225mm)

                     7) 10 Feet (3 meter)  Cross Beams Notched 3"x6" (75mm x 150mm)

                     2) Load Bearing Smooth Tuscan Tapered columns, Load Bearing to 12,000 lbs (5454 kg)

                         114-3/8" high, 6-3/8"top shaft, 7-5/8"bottom shaft (Metric: 2859mm, 159mm top, 191mm bottom)

                     2) Tuscan Caps: Square 10-1/8"x10-1/8", 3" high (75mm), Fits like collar - inside 6-7/16" (161mm)

                     2) Tuscan Base: Square 10-7/8"x10-7/8" (272x272mm), 4-1/4" high (106mm), Inside diameter 7-11/16" (192mm)

 Does not include Perlins (2" x 2" x 12 Feet) 50x50mm x 3.6 meters,  Perlins are the very top decorative cross bars (optional)

 Does not include integration hardware

 PERGOLA KIT:  IPPERK1010-C2  with 4 Load Bearing Tuscan Tapered Columns

  Made from: Heavy arch-polymer, insect/water/rot resistant double primed white

 Application: To stand alone

 Pergola Size: 10 Feet x 10 Feet (3 meters x 3 meters)

 Columns are Steel Re-enforced - all parts Double Primed White

 Kit Includes:  4) 10 Feet (3 meter)  Main Beams Notched 3"x 9" (75mm x 225mm)

                     7) 10 Feet (3 meter)  Cross Beams Notched 3"x6" (75mm x 150mm)

                     4) Load Bearing Smooth Tuscan Tapered columns, Load Bearing to 12,000 lbs (5454 kg)

                         114-3/8" high, 6-3/8"top shaft, 7-5/8"bottom shaft (Metric: 2859mm, 159mm top, 191mm bottom)

                     4) Tuscan Caps: Square 10-1/8"x10-1/8", 3" high (75mm), Fits like collar - inside 6-7/16" (161mm)

                     4) Tuscan Base: Square 10-7/8"x10-7/8" (272x272mm), 4-1/4" high (106mm), Inside diameter 7-11/16" (192mm)

 Does not include Perlins (2" x 2" x 12 Feet) 50x50mm x 3.6 meters,  Perlins are the very top decorative cross bars (optional)

 Does not include integration hardware
